TMPGEnc MPEG Editor 3

Product Information

Edit your MPEG files on the frame level without re-encoding everything! Maintains original video quality!
Write your edited files to Blu-ray Disc (BDAV) and DVD!
High Definition Video importing straight from your HDV camcorder!
Choose from over 170 incredible video transition effects between clips!
Use the included VRCopy utility to import and burn video to DVD-RAM discs! Great for DVD-Recorder users!

Try and Buy

Download the Trial Version:

FREE

Purchase Full Version:

$64.95

Registered TMPGEnc User Discount:

$51.95

Upgrade from MPEG Editor 2.0 PREMIUM:

FREE!

Upgrade from MPEG Editor 2.0:

$39.95

Overview

Features

System Requirements

Specifications

Screenshots

Features At-A-Glance:

Edit your favorite TV shows and home movies on the frame level without re-encoding the whole video file!
Maintain your High Definition video quality while editing
Burn to DVD or Blu-ray Disc!
Included VRCopy application lets you import from and write to DVD-RAM discs!
Fit-to-disc transcoding makes sure your edited video fits your favorite media
Cut-Edit with surprising ease and speed
Scroll through your video at even higher speeds thanks to DirectX preview rendering!
Capture directly from your HDV camcorder!
Add video transition effects to your clips
Customize your workspace with expandable/collapsable Cut-Edit toolbars!
Full Windows Vista Aero compatibility

See More...

Feature Ratings	What's this?
Ease of Use
Converting Options
Editing Tools
Burning Capability
HD Features

Great With:

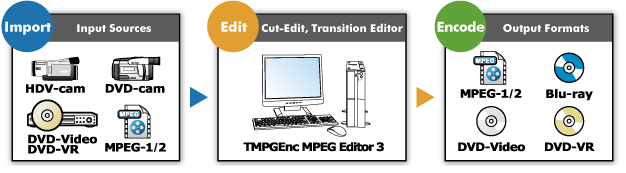

1.) Easy 4-Stage Process

TMPGEnc MPEG Editor 3's easy 4-stage process makes importing, editing, outputting, and burning your MPEG files a breeze with its intuitive interface.

2.) Input and Output Options

Import your MPEG video from your HDV camcorder, DVD camcorder, DVD-VR (video recorder), or any MPEG video file. Then cut-edit and add video transition effects. Finally, output to MPEG1/2, Blu-ray (BDAV), DVD-Video, or DVD-VR.

3.) Edit Your MPEG Video

Edit out all the annoying commercials and unwanted scenes on the frame level. You can even split your footage into multiple clips with the split clip function. Best of all, the quality of your video remains untouched--only edited sections will be re-encoded.

Included MPEG Tools let you multiplex and demultiplex your files, and a Batch Encode Tool lets you queue up multiple project files leaving you free to do other things.

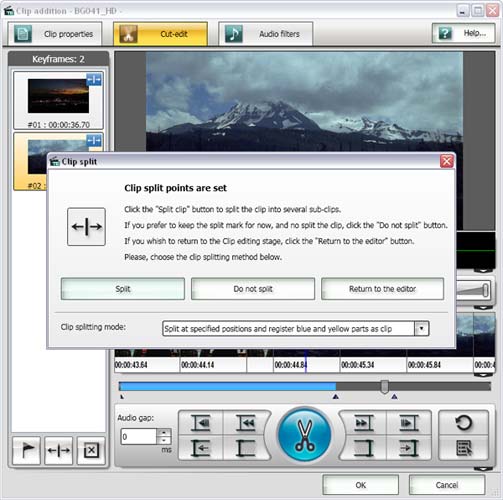

Split your clip into multiple clips with the Split Clip function.

The MPEG Tools allow you to multiplex and demultiplex your MPEG files.

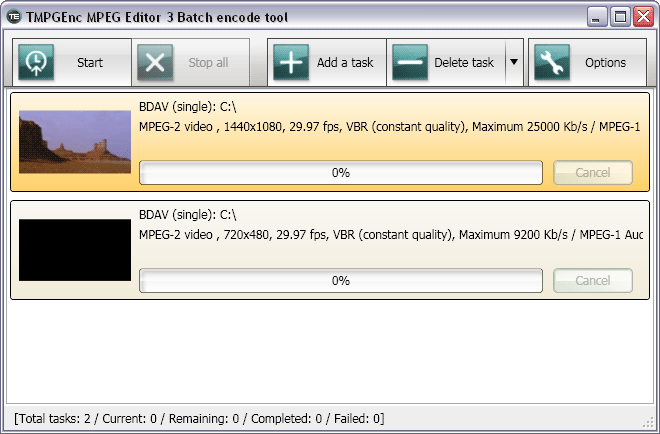

The Batch Encode Tool lets you queue up multiple projects, leaving you free to do other things.

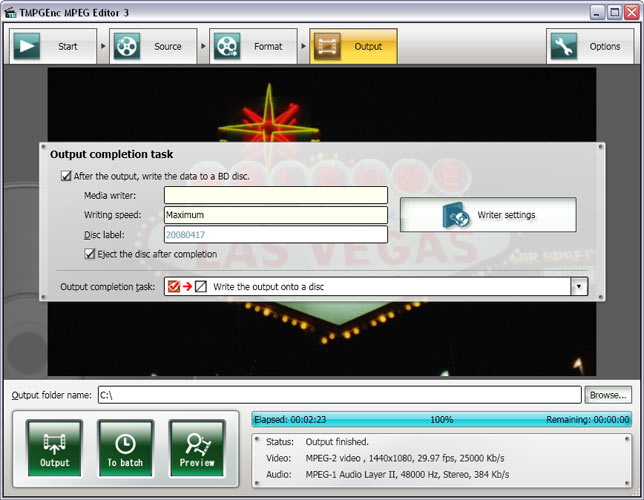

4.) Blu-ray Disc Writing

You've got HD footage...
You've edited your footage and kept it in HD...

And now you can output and burn it to Blu-ray Disc (BDAV) to archive, share, and watch your video in glorious high definition! The built in Blu-ray Disc Writing tool lets you burn your edited MPEG video to single or dual layer Blu-ray Disc.

What will you do with Blu?

Blu-ray discs must be BD-RE Ver2.1, BD-R Ver1.1/1.2 or higher.
BD-RE Ver1.0 discs are not supported.
Requires a Blu-ray (BD-R/BD-RE) write-capable drive.
This software cannot create a menu.
Imported video must conform to BDAV specifications for BDAV output.

5.) Easy DVD Authoring

Along with the ability to burn to Blu-ray Disc, outputting and burning to DVD is now also possible. You can even create a simple DVD menu with the push of a button.

DVD writing-capable drive required.
The DVD menu design is predetermined and cannot be changed.
Imported video must conform to DVD-Video specifications for DVD-Video output.

An example of the DVD Menu you can include when burning to DVD.

6.) HDV Camcorder Capture

Now you can capture video directly from your HDV camcorder. Just plug your camcorder into your computer via an IEEE 1394/i.LINK interface and TMPGEnc MPEG Editor 3 will be able to view the camcorder's contents and add it as a source file. (Does not support AVCHD format.)

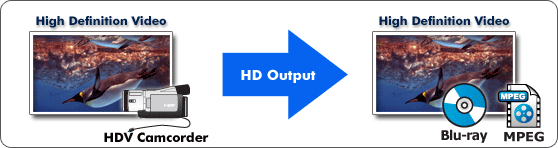

Keep your HD camcorder footage in HD when you output to Blu-ray Disc and MPEG formats!

Keep your HD camcorder footage in HD when you output to Blu-ray Disc format or MPEG!

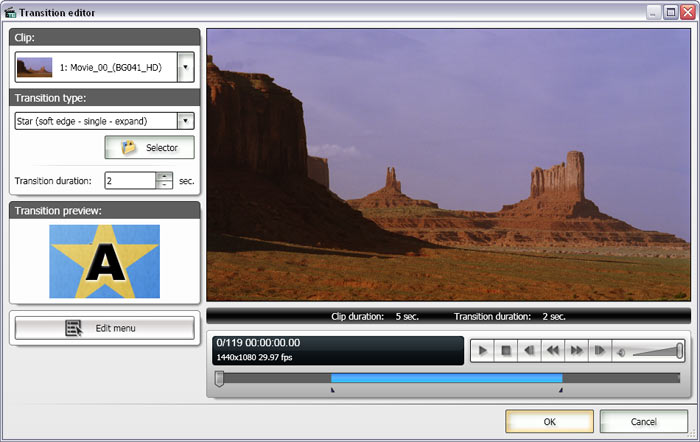

7.) Add Video Transition Effects

TMPGEnc MPEG Editor 3 offers the possibility to create a video transition effect between clips. Now there are more than 170 different effects available through the new and improved Transition Editor window.

With so many transition effects, it can be hard to find the one you're looking for, so we've created a special transition selector option where you can search for a transition by categories or attributes such as hard edge, dissolves, and more!

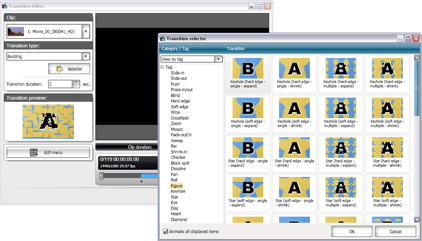

Choose from over 170 incredible video transition effects!

8.) Ultra-High-Speed Thumbnail Navigation

You shouldn't have to wait for video thumbnails to catch up to you, so our new Ultra-High-Speed thumbnail display lets you navigate within a clip with a never before seen speed. By relegating most of the display processing to the video card instead of the central processor, the new Ultra-High-Speed thumbnail navigation achieves an incredible surge in performance and ease of use.

Ultra-High-Speed Thumbnail Navigation image

9.) Cut-Editor Tool Tabs

Since you may not need all of the cut-edit tools at the same time, we added a small and very convenient option: the "Tool Tab". By clicking on a Tool Tab you can hide or display almost any Cut-Editor tool set, letting you organize your workspace in a simple and efficient way. It's great for making more room to see your HD footage!

Normal Display Style

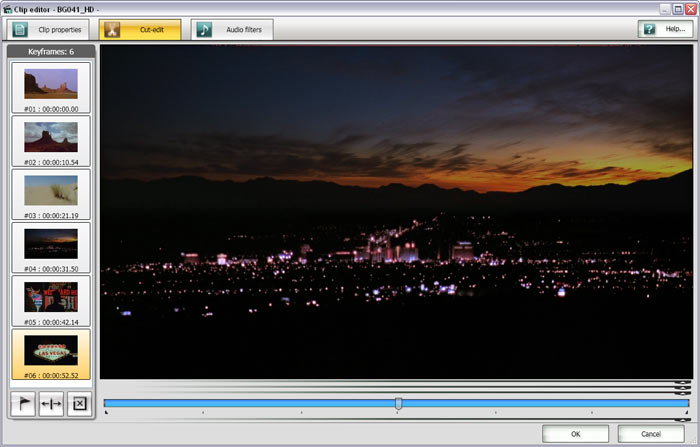

All Tools Minimized

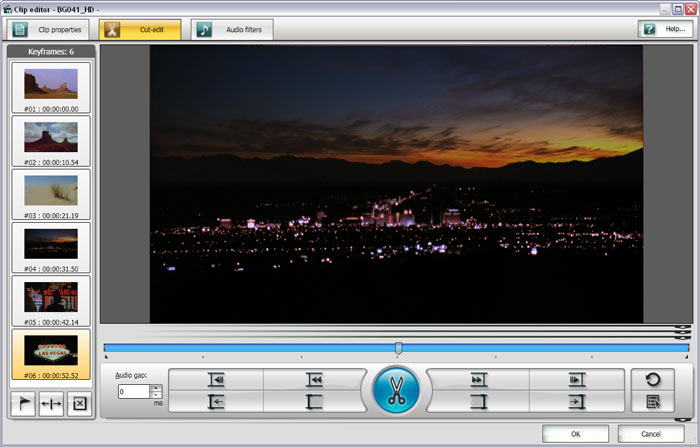

Cut-Edit Tools Activated!

Your minimized tool bar settings will be saved for the next time you use the program!

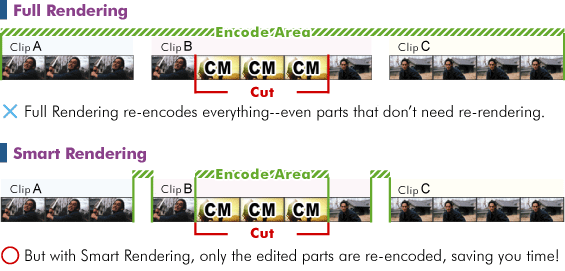

10.) Smart Rendering

Smart Rendering makes the editing process faster and easier by only re-encoding the surrounding frames versus the entire movie. Now you don’t have to wait to re-encode the whole movie for every little cut that is made.

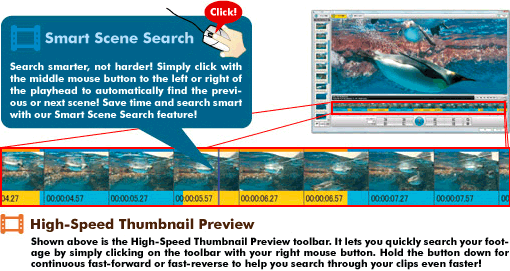

11.) Smart Scene Search

Smart Scene Search in TMPGEnc MPEG Editor 3 is now even easier!

How it works: in the Cut-Edit window, simply click on the High-Speed Thumbnail Preview toolbar with your middle mouse button to automatically find the next or previous scene! The software can detect scene changes based on the composition of each frame. Search smarter, not harder with Smart Scene Search!

12.) Fit-to-Disc Transcoding

Video too big? Media too small? After you’re done editing your digital video, you can specify your desired file output size while keeping your video’s original quality. Make sure your videos fit onto your favorite media without compromising the quality of your High Definition or standard definition video with Fit-to-Disc Transcoding.

13.) VRCopy

TMPGEnc MPEG Editor 3 fully supports DVD-RAM thanks to the included VRCopy application (powered by Panasonic; Matsushita Electric Industrial Co., Ltd.). You can now import your footage, edit, and write straight back to your DVD-RAM disc, all within one program. A great feature if you've got a DVD recorder!

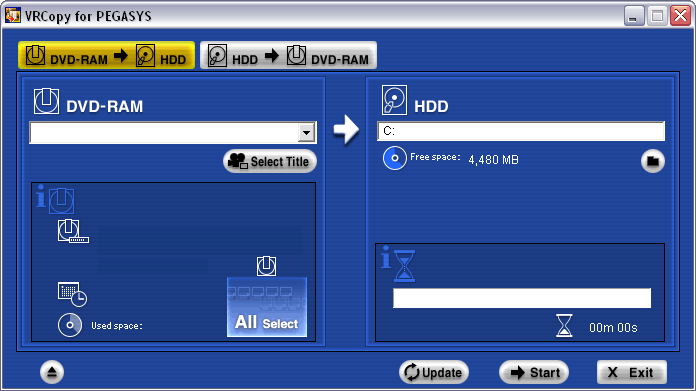

The included VRCopy utility helps import and export DVD-RAM content.

14.) Apply Audio Filters

In the Clip Editor window, you can apply audio filters to enhance or adjust the audio of your clip. Choose from Audio Noise Reduction, Volume Adjustment, Audio Fade-In/Fade-Out, and Bilingual. The Bilingual filter lets you select the main or secondary audio channel or mix two channels together when two language channels are present.

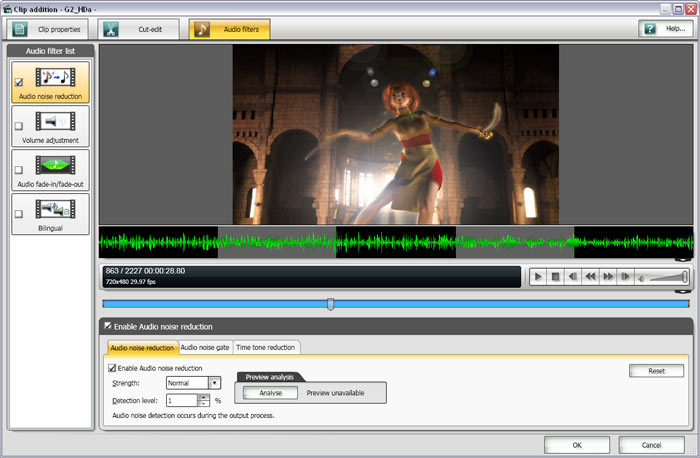

The Audio Filter tab in the Cut-Editor window.

15.) Dual Core and Quad Core CPU Support

Boost your performance and take full advantage of your multi-core computer! TMPGEnc MPEG Editor 3 can use the power of up to two physical CPUs and up to 4 logical CPUs! Great with Intel Core 2 Duo and Athlon 64 X2 processors!

Click the image to the left to download the System Requirement Check Tool. Use it to make sure your computer's components meet the minimum requirements for TMPGEnc MPEG Editor 3.

Minimum System Requirements
PC	IBM PC compatible
OS	- Windows Vista / Vista SP1 (Home Basic/Home Premium/Business/Ultimate) Home Basic does not include Windows Aero features. - WindowsXP Service Pack2 (Home, Pro, Media Center) .NET Framework 3.0 required
CPU	Pentium4 2.0GHz, Athlon64/Opteron or better (Providing SSE extension support)
Graphics	3D Graphics hardware with DirectX 9c compatibility.
RAM	512MB or more
HDD space	100MB for the program + enough space for the input / output files
HDD format	NTFS file format.
Screen resolution	1024×768 or more
Others	- DirectX 9c - Internet connection required for Validation*

Recommended System Requirements
OS	- Windows Vista (Home Premium/Business/Ultimate) - WindowsXP Service Pack2 (Home, Pro, Media Center) .NET Framework 3.0 required
CPU	Multi-Processor, Intel HT Technology, SSE3, Core 2 Duo/Quad
Graphics	Windows Aero compatible video processor ATI Radeon 9600 or higher, nVidia GeForce FX5200 or higher, on-board Intel G965 or higher.
RAM	1024MB or more
Screen resolution	1280×1024 or higher

Recommended System Requirements for HD Editing
OS	Windows Vista (Home Premium/Business/Ultimate)
CPU	Multi-Processor, Core 2 Duo/Quad
Graphics	Windows Aero compatible video processor ATI Radeon X1300 or higher, nVidia GeForce 6600 or higher
RAM	1024MB or more
Screen resolution	1600×1200 or higher

1. Windows 95/98/Me/NT4.0/2000 is no longer supported.
Also, 64-bit versions are not supported.
Windows XP requires the .NET framework version 3.0 freely available from the Microsoft® website.
Windows Aero display functions are not available when the application is used under Windows Vista Home Basic edition.

2. Software utilization is possible with CPUs having lower working frequencies than indicated above provided the CPU supports the SSE instructions.

3. This software uses a license verification system (L.E.A.P.System) which requires an Internet Connection.
After the first installation of the software, the license validation (activation) will be processed when starting the program. It will also be processed periodically from time to time.
Therefore, the PC using this software must be connected to the Internet.
In environments like universities or companies using LAN, we cannot guarantee that the license verification will be correctly processed due to restrictions that might be set from things such as firewalls and security/anti-virus software.
*Before purchasing the software, please run some tests with the trial version which also has the verification system.

Revision History

Supported input formats
Video formats	MPEG-1 System Stream (.mpg)^1 MPEG-1 Elementary Stream (.m1v) ^1 MPEG-2 Program stream (.mpg, .m2p)^2 MPEG-2 Elementary stream (.m2v)^2 MPEG-2 Transport Stream (including HD format) (.mpg, .m2t); (MP@LL, MP@ML, MP@HL, HP@H1440, HP@HL, MP@H1440, HP@ML) ^3 DVD-Video file (VIDEO_TS, .IFO, .VOB)^4 DVD-VR file (VRO)^5 Windows XP Media Center Microsoft TV recorder file (.dvrms)^6 JVC Everio MOD file (*.mod) HDV camcorder (Sony, JVC and Canon models supported)
Audio formats	MPEG-1 Audio Layer II (.mp2) Dolby® Digital (.ac3)^7 Linear PCM (.wav) up to 24 bit 96 kHz uncompressed.

Supported input formats

Video formats

MPEG-1 System Stream (*.mpg)^*1
MPEG-1 Elementary Stream (*.m1v) ^*1
MPEG-2 Program stream (*.mpg, .m2p)^*2
MPEG-2 Elementary stream (*.m2v)^*2
MPEG-2 Transport Stream (including HD format) (*.mpg, .m2t); (MP@LL, MP@ML, MP@HL, HP@H1440, HP@HL, MP@H1440, HP@ML) ^*3

DVD-Video file (VIDEO_TS, *.IFO, *.VOB)^*4
DVD-VR file (VRO)^*5
Windows XP Media Center Microsoft TV recorder file (*.dvrms)^*6

JVC Everio MOD file (*.mod)
HDV camcorder (Sony, JVC and Canon models supported)

Audio formats

MPEG-1 Audio Layer II (*.mp2)
Dolby® Digital (*.ac3)^*7
Linear PCM (*.wav) up to 24 bit 96 kHz uncompressed.

Supported output formats
Video formats^*8	Blu-ray Disc (BDAV format, single and dual layer media supported)^9 DVD-Video (single and dual layer media supported)^10 DVD-VR standard VR file format^11 DVD-Video compliant MPEG file format (MP@ML) XDVD compatible MPEG Video file format (MP@ML) MPEG-2 Video file format NTSC/PAL (MP@LL, MP@ML, MP@HL, HP@H-14, HP@HL, MP@H-14, HP@ML)^12 MPEG-1 file format NTSC (Film)/PAL Video-CD standard compatible MPEG-1 Video file format in NTSC/PAL Super Video CD standard compatible MPEG-2 Video file format in NTSC/PAL HDV standard compatible MPEG-2 Video file format (MP@ML, MP@H-14, MP@HL)
Audio formats	MPEG-1 Audio Layer II (.mp2) Dolby® Digital (.ac3)^7 Linear PCM (.wav) up to 24 bit 96 kHz uncompressed

Supported output formats

Video formats^*8

Blu-ray Disc (BDAV format, single and dual layer media supported)^*9
DVD-Video (single and dual layer media supported)^*10
DVD-VR standard VR file format^*11
DVD-Video compliant MPEG file format (MP@ML)
XDVD compatible MPEG Video file format (MP@ML)
MPEG-2 Video file format NTSC/PAL (MP@LL, MP@ML, MP@HL, HP@H-14, HP@HL, MP@H-14, HP@ML)^*12
MPEG-1 file format NTSC (Film)/PAL
Video-CD standard compatible MPEG-1 Video file format in NTSC/PAL
Super Video CD standard compatible MPEG-2 Video file format in NTSC/PAL
HDV standard compatible MPEG-2 Video file format (MP@ML, MP@H-14, MP@HL)

Audio formats

MPEG-1 Audio Layer II (*.mp2)
Dolby® Digital (*.ac3)^*7
Linear PCM (*.wav) up to 24 bit 96 kHz uncompressed

MPEG Output Settings
Mode	Single file (Merges several source files into a single output file through Smart Rendering) Multiple files (Outputs one file for each source file)
Target	General MPEG / DVD / XDVD / VCD / SVCD / HDV
Aspect ratio	Pixel aspect ratio 1:1 Image apect ratio 4:3 / 16:9 / 2.21:1
Profile & Level	Identical to input
Framerate	Identical to input
Video system	Identical to input (NTSC/PAL)
Encode format	CBR/VBR (Constant Quality from 1 to 100) / VBR (transcode)
Transcode	Possibility to specify an output file size through transcoding (option availability depends on output format)
VBV buffer size	Identical to input

MPEG System Encoder
Output format	MPEG-1 System stream (ISO/IEC 11172-1 standard) MPEG-2 Program stream (ISO/IEC 13818-1 standard)

MPEG Video Encoder
Output Format	MPEG-1 System stream (ISO/IEC 11172-1 standard) MPEG-2 Program stream (ISO/IEC 13818-1 standard)
Aspect Ratio	Pixel aspect ratio 1:1 / 4:3 / 16:9 / 2.21:1
Framerate	Same as input
Encode Mode	CBR / VBR (constant quality from 0 to 100)
Profile & Level	Same as input (MP@LL, MP@ML, MP@HL, HP@H-14, HP@HL, MP@H-14, HP@ML)
Video System	Same as input (NTSC / PAL)
VBV buffer size	Same as input

MPEG Audio Encoder
Output Settings	Automatic Custom Model clip
Output Format	Linear PCM MPEG-1 Audio Layer II (Standard ISO/IEC 11172-3) Dolby Digital^*7
Bitrate	MP2 (stereo): 64 / 96 / 112 / 128 / 160 / 192 / 224 / 256 / 320 / 384 kb/s MP2 (monaural): 32 / 64 / 80 / 96 / 112 / 128 / 160 / 192 kb/s Dolby Digital (stereo): 128 / 160 / 192 / 224 / 256 / 320 / 384 / 448 kb/s Dolby Digital (monaural): 64 / 80 / 96 / 112 / 128 / 160 / 192 / 224 / 256 kb/s Linear PCM (stereo, bit×kHz): 1536 (16×48) / 1920 (20×48) / 2304 (24×48) / 3072 (16×96) / 3840 (20×96) / 4608 (24×94) kb/s Linear PCM (monaural, bit×kHz): 768 (16×48) / 960 (20×48) / 1152 (24×48) / 1536 (16×96) / 1920 (20×96) / 2304 (24×96) kb/s
Sampling Rate	MP2: 32 / 44.1 kHz Dolby Digital: 32 / 44.1 / 48 kHz Linear PCM: 48 / 96 kHz
Quantization	MP2: 16 bits linear Dolby Digital: 16 bits linear Linear PCM: 16 / 20 / 24 bits linear
Channel Mode	MP2: monaural / stereo / joint-stereo Dolby Digital: monaural / stereo / 5.1 with Smart Rendering output only, multichannel audio downmixed to 2 ch Linear PCM: monaural / stereo

DVD-VR Output
Character Set	Shift-JIS
Output Mode	Single / multiple program
Disc Title	Disc titling option available
Program Title	Program titling option available for each program. (Uses the clip name)
Chapter Title	Chapter titling option available for each chapter within a program, using the chapter names specified in the Clip editor windown. (Up to 99 chapters per track)^*13
Re-Encode Analyzer	Re-encoding needs can be evaluated for the whole program (single program output mode), or each program (multiple program output mode) by using the Smart Rendering analyzer
File Structure	DVD-VR compliant DVD_RTAV folder and file structure (VR_MANGR.IFO, VR_MANGR.BUP, VR_MOVIE.VRO).
Video Settings
Resolution	PAL: 720×576 / 704×576 / 544×576 / 480×576 / 352×576 / 352×288 NTSC: 720×480 / 704×480 / 544×480 / 480×480 / 352×480 / 352×240
Aspect Ratio	4:3 / 16:9
Framerate	PAL: 25 fps NTSC: 29.97 fps
Maximum Bitrate	Video: 9800 kb/s Video + audio: 9848 kb/s
Audio Settings
Format	Linear PCM MPEG-1 Audio Layer II (Standard ISO/IEC 11172-3) Dolby Digital^*7
Bitrate	MP2 (stereo): 64 / 96 / 112 / 128 / 160 / 192 / 224 / 256 / 320 / 384 kb/s MP2 (monaural): 64 / 80 / 96 / 112 / 128 / 160 / 192 kb/s Dolby Digital (stereo): 128 / 160 / 192 / 224 / 256 / 320 / 384 / 448 kb/s Dolby Digital (monaural): 64 / 80 / 96 / 112 / 128 / 160 / 192 / 224 / 256 kb/s Linear PCM (stereo): 1536 kb/s Linear PCM (monaural): 768 kb/s
Sampling Rate	48 kHz
Quantization	16 bits linear
Channel Mode	MP2: monaural / stereo / joint-stereo / dual Dolby Digital: monaural / stereo / dual / 5.1 with Smart Rendering output only, multichannel downmixed to 2 ch Linear PCM: monaural / stereo (in case of dual channel source, it is possible to switch the language for bilingual compatible player decks)

Refer to the DVD-VR format compatible file note in the software's Help file.
Direct editing of DVD-RAM or DVD-RW VR data (on Disc Edit) is not supported.
Does not creat a DVD-VR playlist.

DVD-Video Output
Menu Layout	Fixed menu (one type) / No menu
Output Mode	Single / multiple program
Disc Title	Top menu naming option available in multiple track mode.
Track Title	Track menu naming option available in single track mode.
Chapter Title	Chapter titling option available for each chapter within a program, using the chapter names specified in the Clip editor windown. (Up to 99 chapters per track)
Re-Encode Analyzer	Re-encoding needs can be evaluated for the whole program (single program output mode), or each program (multiple program output mode) by using the Smart Rendering analyzer
File Structure	DVD-Video compliant VIDEO_TS folder and file structure (.IF0, .BUP, *.VOB).
Video Settings
Resolution	PAL: 720×576 / 704×576 / 544×576 / 480×576 / 352×576 / 352×288 NTSC: 720×480 / 704×480 / 544×480 / 480×480 / 352×480 / 352×240
Aspect Ratio	4:3 / 16:9
Framerate	PAL: 25 fps NTSC: 29.97 fps
Maximum Bitrate	Video: 9800 kb/s Video + audio: 9848 kb/s
Audio Settings
Format	Linear PCM MPEG-1 Audio Layer II (Standard ISO/IEC 11172-3) Dolby Digital^*7
Bitrate	MP2 (stereo): 64 / 96 / 112 / 128 / 160 / 192 / 224 / 256 / 320 / 384 kb/s MP2 (monaural): 64 / 80 / 96 / 112 / 128 / 160 / 192 kb/s Dolby Digital (stereo): 128 / 160 / 192 / 224 / 256 / 320 / 384 / 448 kb/s Dolby Digital (monaural): 64 / 80 / 96 / 112 / 128 / 160 / 192 / 224 / 256 kb/s Linear PCM (stereo): 1536 kb/s Linear PCM (monaural): 768 kb/s
Sampling Rate	48 kHz
Quantization	16 bits linear
Channel Mode	MP2: monaural / stereo / joint-stereo / dual Dolby Digital: monaural / stereo / dual / 5.1 with Smart Rendering output only, multichannel downmixed to 2 ch Linear PCM: monaural / stereo (in case of dual channel source, it is possible to switch the language for bilingual compatible player decks)

Refer to the DVD-Video format compatibility file in the software's Help file.

BDAV Disc Output
Supported BDAV Format	SD resolution (SESF) / HDV-HD1 / HDV-HD2 / Other, supports all HD resolutions^*14
Character Code	Set in the Preferences ISDB (Japan) / ISO 646 (ASCII) / ISO 8859-1 (Latin-1) / ISO 8859-2 (Central Europe) / ISO 8859-3 (Latin-3) / ISO 8859-4 (Balt) / ISO 8859-5 (Cyrillic) / ISO 8859-6 (Arabic) / ISO 8859-7 (Greek) / ISO 8859-8 (Hebrew) / ISO 8859-9 (Latin-5) / ISO 10646-1 (Unicode)^*15
Output Mode	Single / multiple program
Disc Title	Disc titling option available^*16
Program Title	Program titling option available for each program. (Uses the clip name)^*16
Chapter Title	Chapter titling option available for each chapter within a program, using the chapter names specified in the Clip editor windown. (Up to 99 chapters per track)^*13
Re-Encode Analyzer	Re-encoding needs can be evaluated for the whole program (single program output mode), or each program (multiple program output mode) by using the Smart Rendering analyzer
File Structure	BDAV compliant folder and file structure (CLIPINF, PLAYLIST, STREAM, info.bdav).
Video Settings
Resolution^*17	PAL: 1920×1080 / 1440×1080 / 1280×720 / 720×576 / 704×576 / 544×576 / 480×576 / 352×576 / 352×288 NTSC: 1920×1080 / 1440×1080 / 1280×720 / 720×480 / 704×480 / 544×480 / 480×480 / 352×480 / 352×240
Aspect Ratio	4:3 / 16:9
Framerate^*18	PAL: 25 / 50 fps NTSC: 23.976 / 24 / 29.97 / 59.94 fps
Maximum Bitrate^*19	Video: 25000 kb/s
Audio Settings
Format	Linear PCM MPEG-1 Audio Layer II (Standard ISO/IEC 11172-3) Dolby Digital
Bitrate	MP2 (stereo): 64 / 96 / 112 / 128 / 160 / 192 / 224 / 256 / 320 / 384 kb/s MP2 (monaural): 32 / 64 / 80 / 96 / 112 / 128 / 160 / 192 kb/s Dolby Digital (stereo): 128 / 160 / 192 / 224 / 256 / 320 / 384 / 448 kb/s Dolby Digital (monaural): 64 / 80 / 96 / 112 / 128 / 160 / 192 / 224 / 256 kb/s Linear PCM (stereo, bit×kHz): 1536 (16×48) / 1920 (20×48) / 2304 (24×48) / 3072 (16×96) / 3840 (20×96) / 4608 (24×96) kb/s Linear PCM (monaural, bit×kHz): 768 (16×48) / 960 (20×48) / 1152 (24×48) / 1536 (16×96) / 1920 (20×96) / 2304 (24×96) kb/s
Sampling Rate	MP2: 48 kHz Dolby Digital: 48 kHz Linear PCM: 48 / 96 kHz
Quantization	MP2: 16 bits linear Dolby Digital: 16 bits linear Linear PCM: 16 / 20 / 24 bits linear
Channel Mode	MP2: monaural / stereo / dual Dolby Digital: monaural / stereo / dual / 5.1 with Smart rendering output only, multichannel audio downmixed to 2 ch Linear PCM: monaural / stereo (in case of dual channel source, possibility to switch the language for bilingual compatible player deck)

BDAV output requires the source video characteristics match the BDAV standard.
BDAV standard included the SESF, ISDB-T, DVB and ATSC format. Refer to the video and audio note regarding compatible source file formats in the software's Help file.

Main Edit Functions
Source Range	Specifies the outputable part of the clip
High-Speed Thumbnail	Fast navigation within a clip during cut-edit and chaptering work.
Clip Merge	Merges several Clip into one unique output file, Program or Track by using Smart rendering.
Undo and Redo	Keeps a record of the last 50 actions for undo and redo.
Playback Volume	Allows you to adjust the audio playback volume in the cut-edit window.
Cut-Edit	Removes one or more parts of the Clip.
Clip Splitter	Allows you to split a Clip into two or more independant clips.
XDVD Detection	Automatically changes the thumbnail display settings to XDVD mode when a XDVD type encoded clip is present.
High-speed Draw Mode	Accelerate the display speed of the video preview. (Windows Vista only, switches to Overlay mode when used on Windows XP)
Keyframe Entry Point	Specifies the keyframe entry points within the Clip.
Keyframe Tool	Allows you to rapidly mark the keyframe entry points by specifying a time code, an interval or a number of keyframes. Added keyframe marks can also contain a Clip split mark.
Smart Scene Search	Activates the scene change detection by clicking on the mouse center button.
Scene Change Detection	Outputs an I Picture when a scene change is detected within the re-encoded part.
Aspect Ratio Change	Allows you to change the aspect ratio value of the output.
Audio Filtering	Provides a set of audio filters for correction and enhancement: Audio gap correction Noise reduction Time tone reduction Volume adjustment in absolute and relative (Normalization and Uniformization) values Fade-in Fade-out Bilingual splitting/mixing

Other Functions
Transition Effect	Creates transition effect between Clips.
File Splitting	Using smart rendering, a unique input file can be split into two or more Clips outputted independently.
Preview Rendering Setting	Possibility to set the renderer engine used to display the clip preview in the cut-edit stage and others.
Batch Encode Tool	Registers projects into a work batch list for automated output and processing of projects.
MPEG Tools	Provides the functions for multiplexing and demultiplexing MPEG files. Includes a batch list for automated processing of MPEG tools projects.
Re-Encode Analyzer	A function verifying the parts of the output that need a re-encode. In case of multiple output the analysis process is applied to each clip.
Clipboard	Allows you to save in the system clipboard a snapshot of the picture displayed in the preview. (*.bmp format)
Interface Iconization	Numerous parts of the interface have been replaced by icons.
TMPGEnc News Center	Automatically gets news and information from the TMPGEnc server.
Keyframe File	Can save and read a file containing the timecode position of chapters/keyframes of a clip. Supports *.keyframe files generated by TMPGEnc 3.0/4.0 XPress, TMPGEnc MPEG Editor 1.0/2.0, etc.
HDV Import	Can capture the HD content of an HDV device.
DVD-Video / DVD-VR Support	Can import the content of a DVD-Video or DVD-VR provided there is no copy protection established.
Media Center Edition**	Converts Microsoft DVR-MS TV recording file format into MPEG Program stream usable as source.
Everio Support	Can import the MOD files found in the JVC Everio hard disk digital video camcorder.
Time Code Corrected MPEG Support	Can use time code corrected MPEG files information for audio lag suppression.
Jog Shuttle Support	Clip editor navigation keyboard short-cuts comply to jog-shuttle command set.
Audio Re-Sampling	High quality audio sampling rate conversion using 32 bit floating point enabled calculations in 32 / 44.1 / 48 / 96 kHz.
Output Preview	Preview the project's content before output processing.
CPU Priority	5 CPU usage priority allocation levels from idle time only to full time process.
Final Task**	Automatically shut-downs, goes into stand-by or hibernate mode when the output process completes.

*Notes

MPEG-1 VBR (variable bitrate) file import is not supported.
Depending of the settings and device used, an audio gap may appear in the captured movie data. Use the trial version to verify the quality of your capture system.
Transport stream importation tested with sources generated by a JVC GR-HD1 and a SONY HDR-FX1/HC1.
Supports video files generated by the TMPGEnc series software encoder, most of the capture devices and DVD recorders. Depending of the settings and device used, an audio gap may appear in the captured movie data. Use the trial version to verify the quality your capture system before purchasing the retail version. Partially damaged source file may not be imported at all. This application cannot process DVD-Video protected by a Copyright or anti-copy enforcement system such as CSS and CPRM.
DVD-VR importation requires a media compatible drive and UDF 2.0 support. Standard Windows installation not being able to copy or read UDF 2.0 format, such function cannot be used. This application cannot process DVD-Video protected by a Copyright or anti-copy enforcement system such as CSS and CPRM.
This application cannot read copy-protected Microsoft TV recorder files.
Support Dolby Digital audio 1 ch (monaural) and 2 ch (stereo) input, output and encoding. Dolby Digital audio multichannel supported in the preview and cut-edit. Generated Dolby Digital audio is for personnal, non-commercial use only.
MPEG files with different characteristics cannot be merged.
Requires a blu-ray compatible media writer. Menu cannot be added in BDAV output mode. Only BDAV compatible files can be outputted in BDAV mode. The BDAV standard format may differ depending of the source file.
Requires a compatible media writer. Can only add one fixed type of menu or no menu at all. Only DVD-Video compatible files can be outputted in DVD-Video mode.
Can only write onto DVD-RAM media.
Profile and level depends of the input file. In case of transport stream input, only the HDV mode is available.
Some players may not display the chapters.
SESF support is required for BDAV players. HDV and other HD resolution support may differ depending the player used.
Please verify if the selected character code is supported by your BDAV player.
Requires a player supporting both the disc/program title display and character code support.
Minimum and maximum resolution may vary according to the broadcast standard.
The value may vary according to the broadcast standard.
The maximum value may vary according to the broadcast standard or resolution.

**Notice

Supports MPEG files generated by the TMPGEnc, TMPGEnc Plus, TMPGEnc 3.0/4.0 XPress and other software MPEG encoders (including realtime MPEG encoder for video capture devices), or by MPEG hardware encoders.
DVD-Video / DVD-VR VOB or VRO file direct importation in the Source list may not perform as expected because of the peculiar file structure used. In any case, use the DVD importation option of the Source Wizard to import a DVD-Video or DVD-VR content. Even when using the Source Wizard, Some DVD-Video / DVD-VR may not import properly.
Media Center Edition DVR-MS file import requires at least Windows XP SP2.
In general, partially damaged MPEG files may not import properly.
Possible Final task settings vary according to the hardware and operating system configuration.
Characteristics of this product may change without notice.

The Start Stage

The Source Stage

The Format Stage

The Output Stage

Transition Editor

Clip Editor

Runs great on Intel Pentium 4 HT processors

Intel Pentium, Core 2 Duo and Intel Core 2 Extreme are trademarks of Intel Corporation in the U.S. and other countries. TMPGEnc and the TE symbol are registered trademarks of Pegasys Inc. TMPG Inc. and the TMPG Inc. symbol are registered trademarks of TMPG Inc., a division of Pegasys Inc. Microsoft, Windows, and DirectX are registered trademark of Microsoft Corporation for the United States of America and other countries. CRIWARE is a registered trademark of CRI Middleware for Japan and other countries. This software is based in part on the work of the Independent JPEG Group. Dolby and the Double-D symbol are registered trademarks of Dolby Laboratories. MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson. All other marks, product name and company name are property of their respective owner. No effort has been made in this document to include ™ or ® marks.
